Alcatel PDF schematics and service manuals

Title

File Size

Download Link

Alcatel 6033X Idol Ultra (S850) schematic.rar

3.4Mb

Download

Alcatel 6040D Idol X (S950) schematic.rar

2.9Mb

Download

Alcatel 6043D idol X+(S960) schematic.rar

5.1Mb

Download

Alcatel AT01 L2 Service Manual.rar

1.3Mb

Download

Alcatel OT-282 MTC282 L2 Service Manual.rar

694.3kb

Download

Alcatel OT-4005D L2 Service Manual.rar

1.2Mb

Download

Alcatel OT-4010 OT-4011 L2 Service Manual.rar

814.1kb

Download

Alcatel OT-4015 X A D N L2 Service Manual.rar

1.2Mb

Download

Alcatel OT-4030 MTC970 L2 Service Manual.rar

1.5Mb

Download

Alcatel OT-5035 L2 Service Manual.rar

790.9kb

Download

Alcatel OT-510a L2 Service Manual.rar

2.2Mb

Download

Alcatel OT-6030 L2 Service Manual.rar

3.2Mb

Download

Alcatel OT-710 schematic.rar

524kb

Download

Alcatel OT-806D schematic.rar

206.5kb

Download

Alcatel OT-890D Service Manual.rar

2.2Mb

Download

Alcatel OT-900 OT-901 L2 Service Manual.rar

1.7Mb

Download

Alcatel OT-902 L2 Service Manual.rar

1.2Mb

Download

Alcatel OT-918 L2 Service Manual.rar

2Mb

Download

Alcatel OT-930D L2 Service Manual.rar

1Mb

Download

Alcatel OT-985 L2 Service Manual.rar

3.7Mb

Download

Alcatel OT-990 L2 Service Manual.rar

3.3Mb

Download

Alcatel OT-992D L2 Service Manual.rar

1.2Mb

Download

Alcatel OT-995 OT-996 OT-4301 OT-A10 L2 Service Manual.rar

3.8Mb

Download

Alcatel Schematic Diagrams.rar

4.7Mb

Download

Alcatel BE1-BE3 Schematic Diagrams.rar

845.2kb

Download

Alcatel HD1 Schematic Diagrams.rar

847.5kb

Download

Replacement Sensor Alcatel 6012x

If you have a model of the device 6012X or 6012D and you began to notice problems with the sensor: the screen changes sharply images, false presses, etc., it may seem that the phone lives its own life.



Discharges to factory settings do not work. At the time of this writing, only one treatment is to replace the display module.



Check if the device is under warranty, then return it to warranty repair. The manufacturer knows about this defect and is working on software elimination of this problem. In the meantime, the ACS is changing the display module under the warranty to a module of another revision in which there is no such problem.



If you do not have a guarantee and have a desire to change the module yourself, read below:

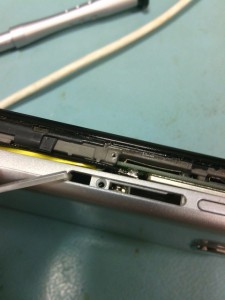

The case is easily disassembled with a plastic card. Beforehand, do not forget to unscrew the small screw in the memory card slot. After removing the back of the case you will need to unscrew the 2 screws holding the board and the 2 bolts securing the battery contacts.

Remove the battery. Carefully remove the adhesive tape from the connector of the cable (next to the power button)



Carefully remove the board, after unplugging the power button and the volume from the case and disconnecting all the cables from the board

For repair, you will need a new revision sensor and an adhesive to glue the sensor into the housing (although quite often the sensor can be peeled off without damaging the old adhesive)

The module on this model is not easily peeled off, heat the display glass up to 80-90 degrees with a hairdryer and pick up the module from the side with a sharpened plastic card.

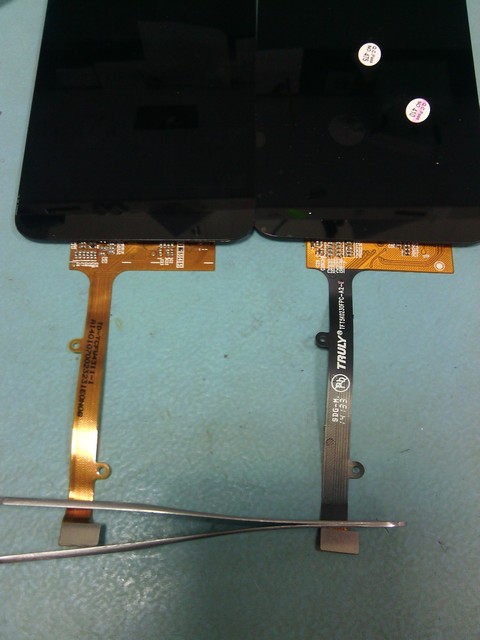

With yellow plume module old revision, black coated new revision
With yellow plume module old revision, black coated new revision

At observance of elementary accuracy all varies without problems and quickly enough, at me all work occupies 10 minutes.



If the replacement module is not your option, then maybe the manufacturer will be able to defeat these glitches programmatically. In firmware 01004 the improved work of the sensor is stated, try it maybe you will help.



Good luck!
